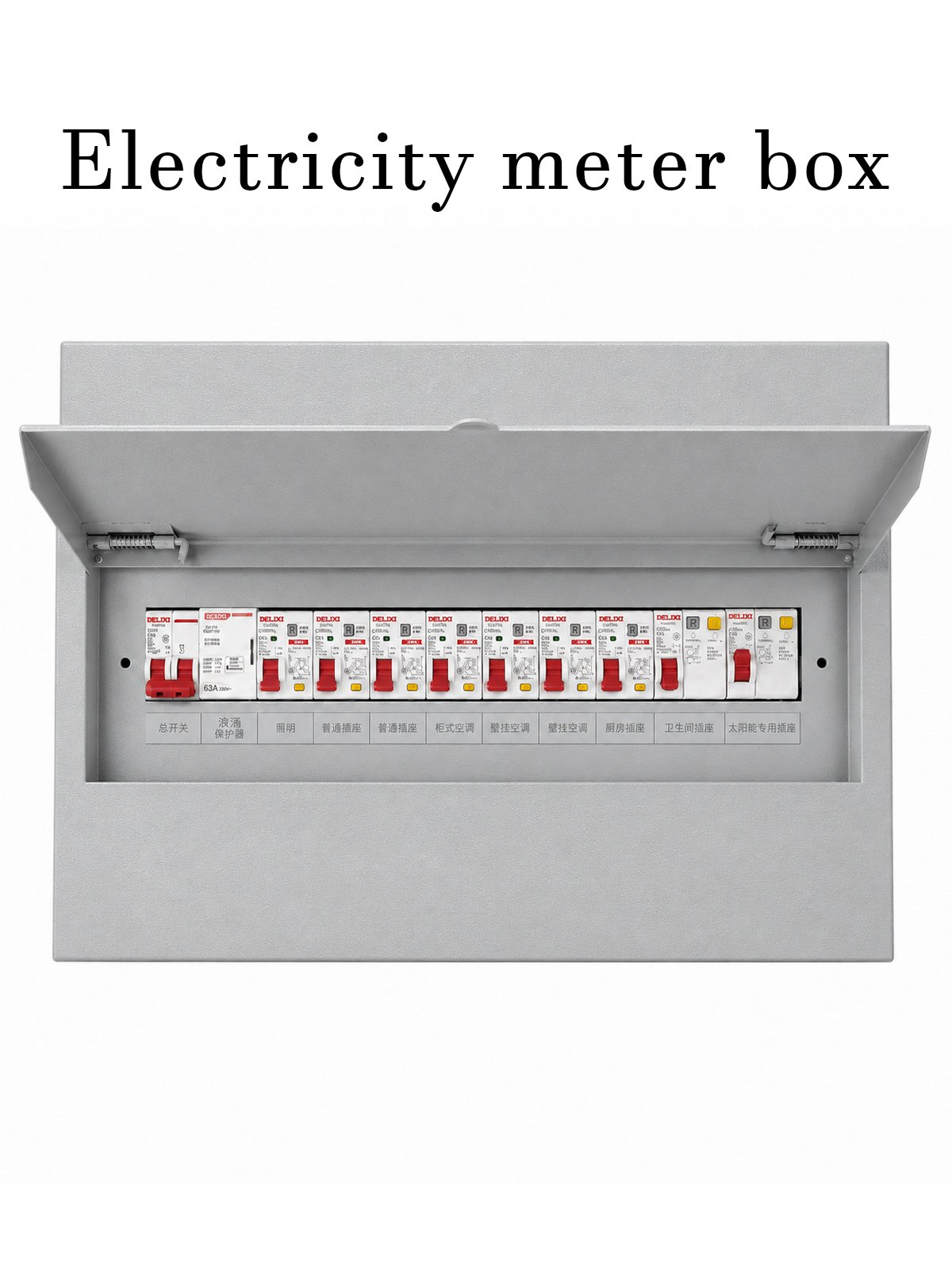

PZ30 Indoor Panel

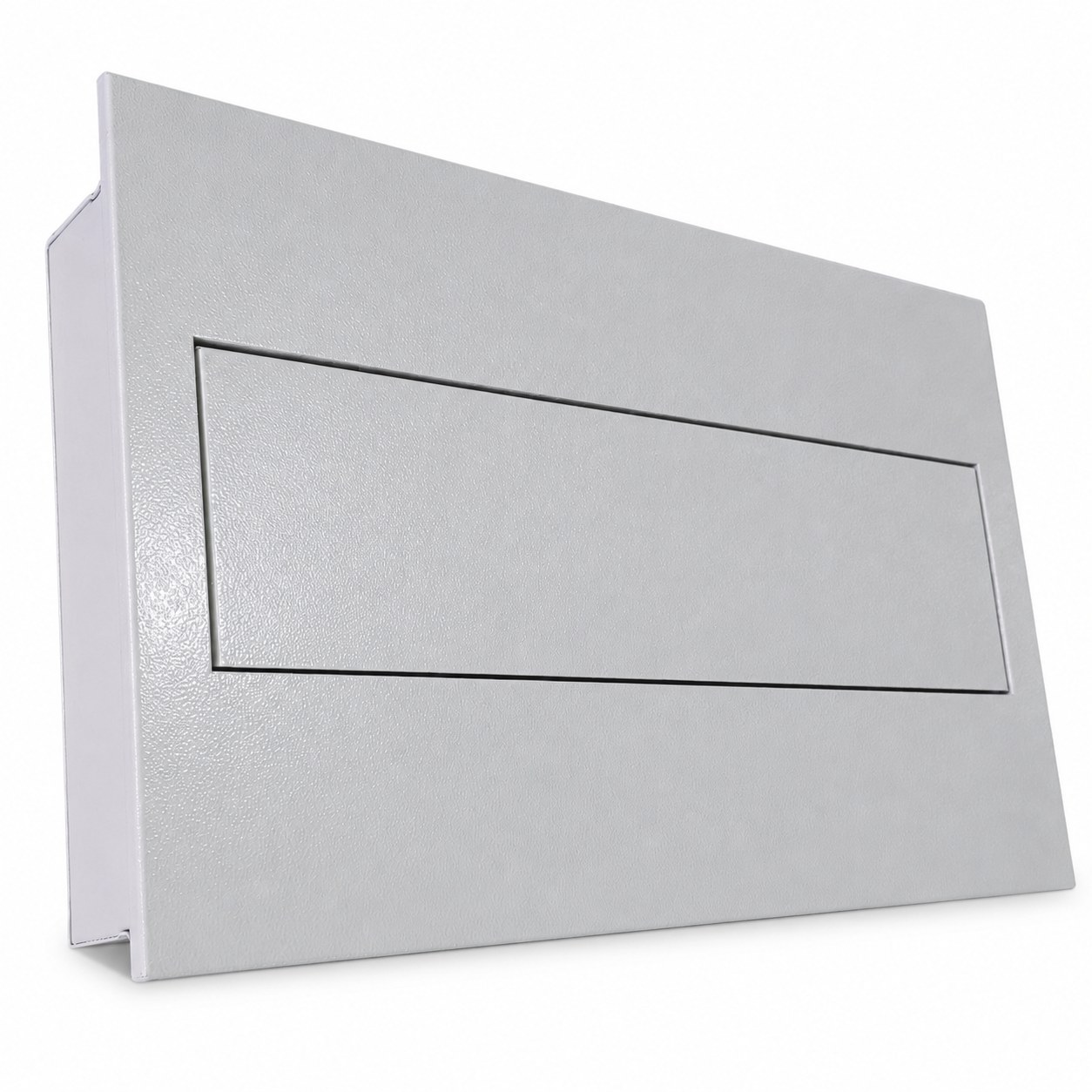

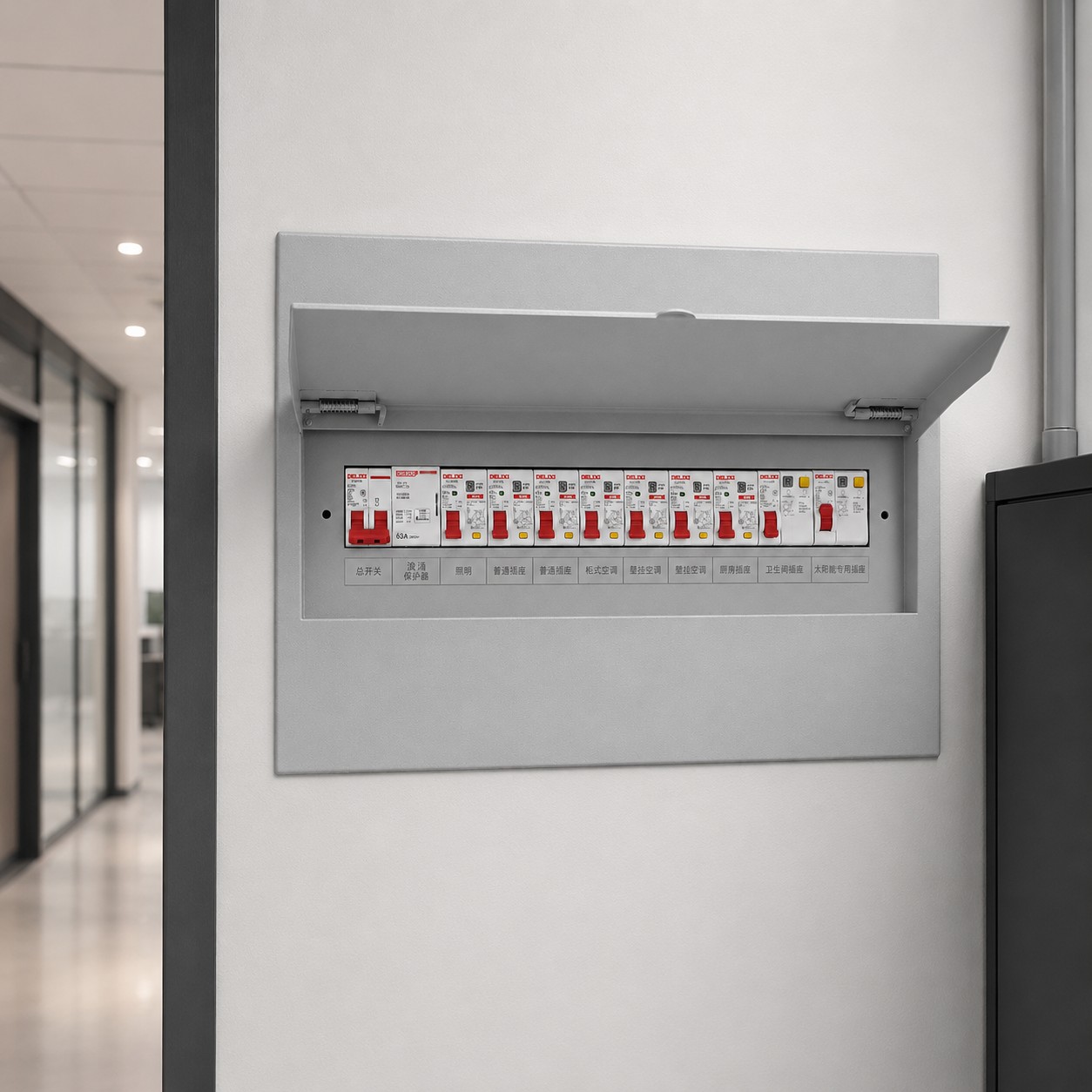

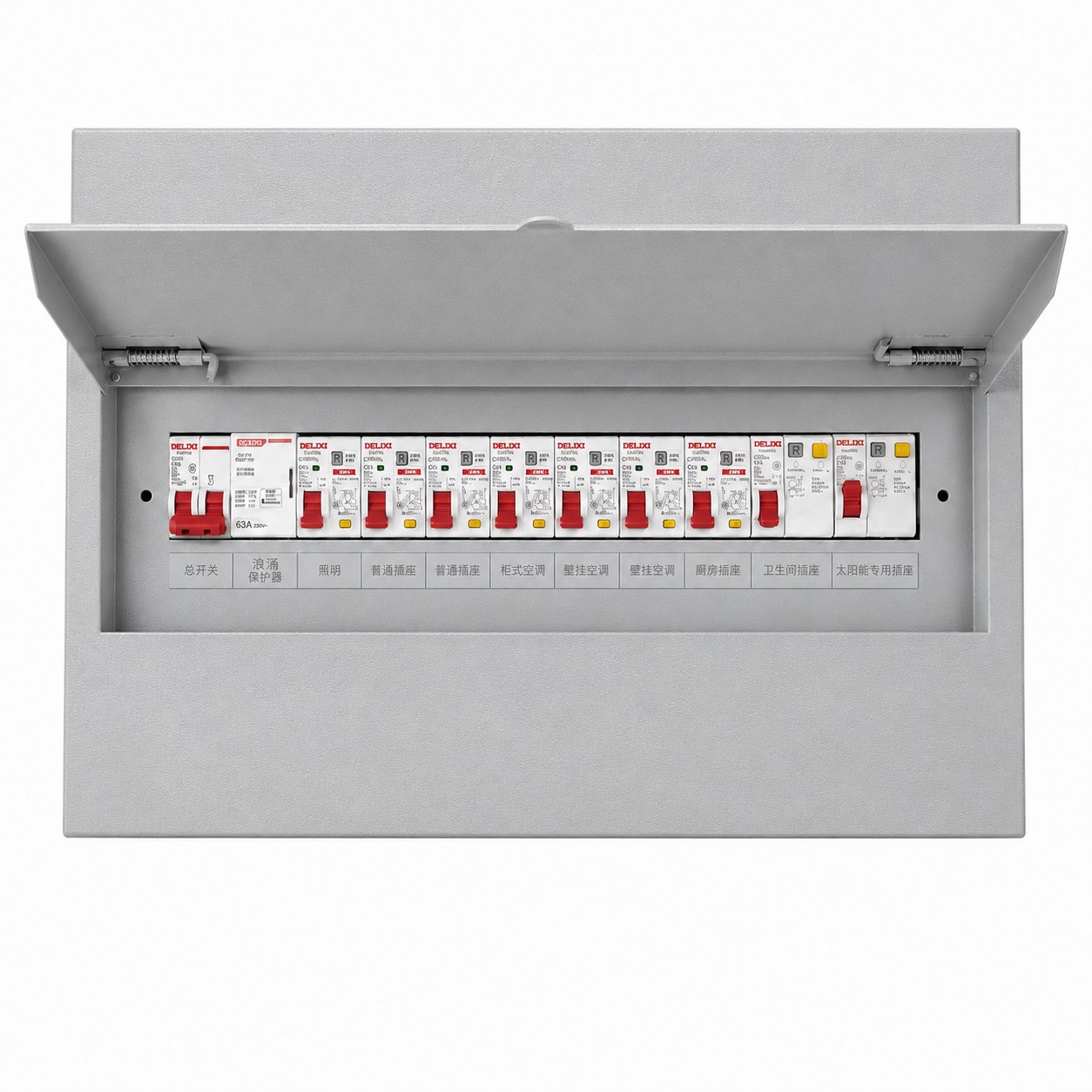

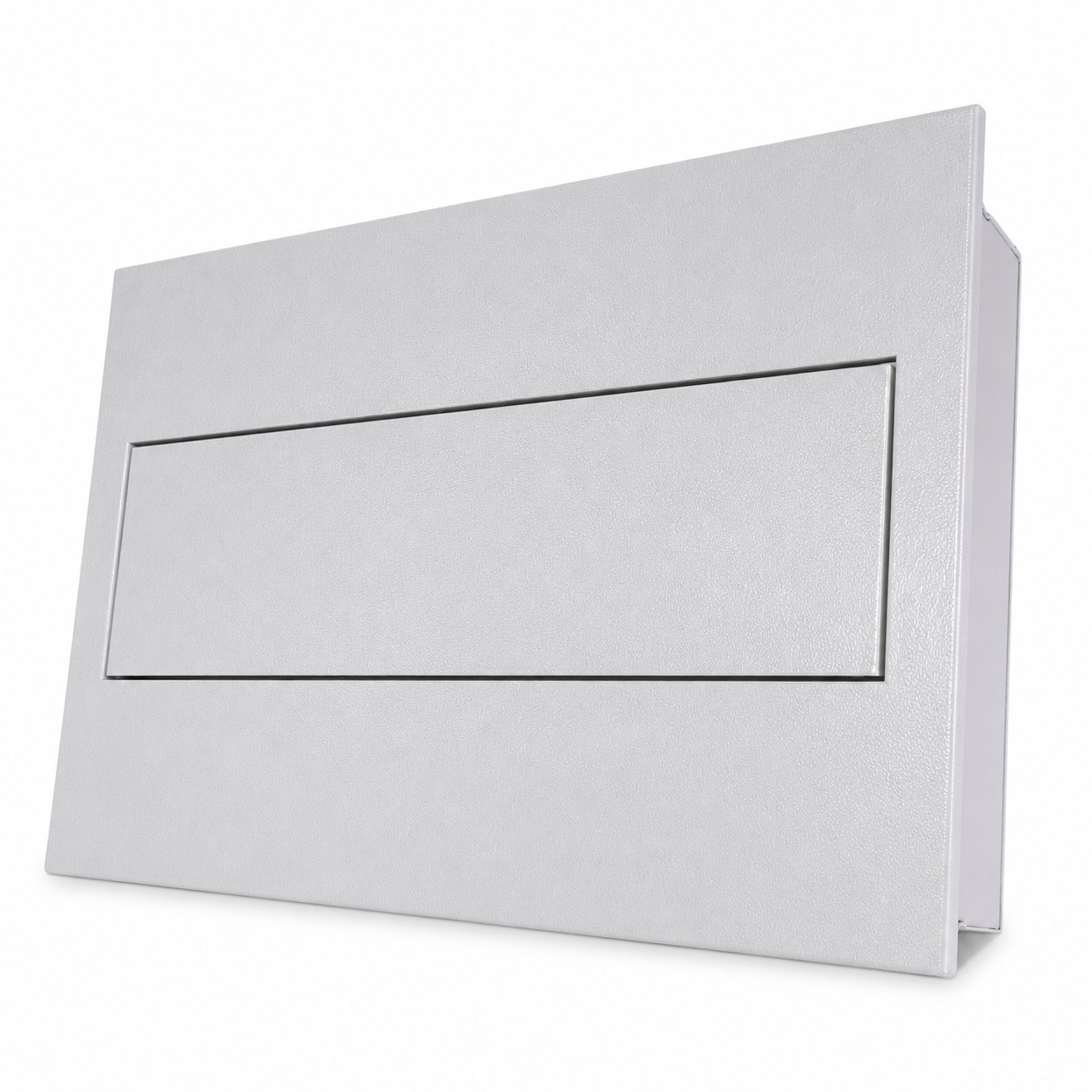

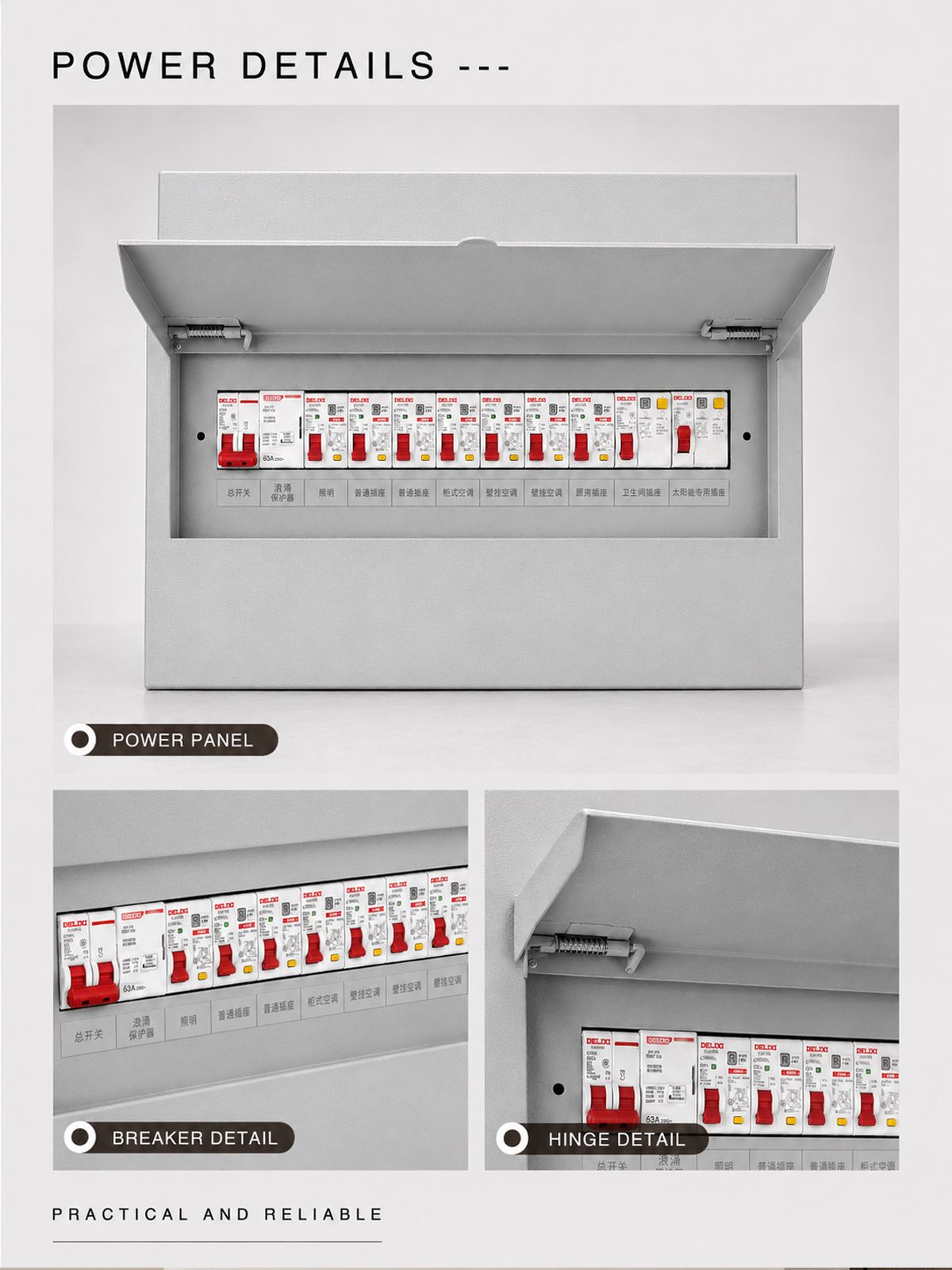

The PZ30 enclosure is a terminal distribution device for modular electrical appliances with a width that is an integer multiple of 9mm. It is available in both concealed and surface-mounted versions. This product is suitable for single-phase three-wire or three-phase five-wire terminal circuits with a rated voltage of 230V or 400V and a total load current not exceeding 100A. It serves as a complete set of devices for controlling electrical equipment and protecting against overload, short circuit, overvoltage, and leakage. The main structural components include a transparent cover (iron cover), a top cover, the enclosure body, mounting rails, and neutral/ground busbars. It houses electrical appliances with a width of 9mm, which can be combined arbitrarily as needed. The mounting rail height is adjustable. The switch handles are exposed, while live parts and other components are concealed inside the top cover. Opening the door allows for convenient operation and ensures safe and reliable use. The enclosure body has inlet and outlet holes on the top, bottom, left, right, and back for easy wiring. It can be widely used in high-rise buildings, hotels, residences, stations, ports, airports, hospitals, theaters, large commercial outlets, and industrial and mining enterprises.

Product Series: PZ30
Origin: Dezhou, Shandong, China
Imported: No
Function Type: High-voltage wiring box (household/industrial electrical box)
Product Certification: CCC (National Standard 3C Safety Certification)
Order Number / Item Number / Material Number: PZ30
Customizable: Yes
Exclusively for Cross-border Export: No
Minimum Packaging Quantity: 1

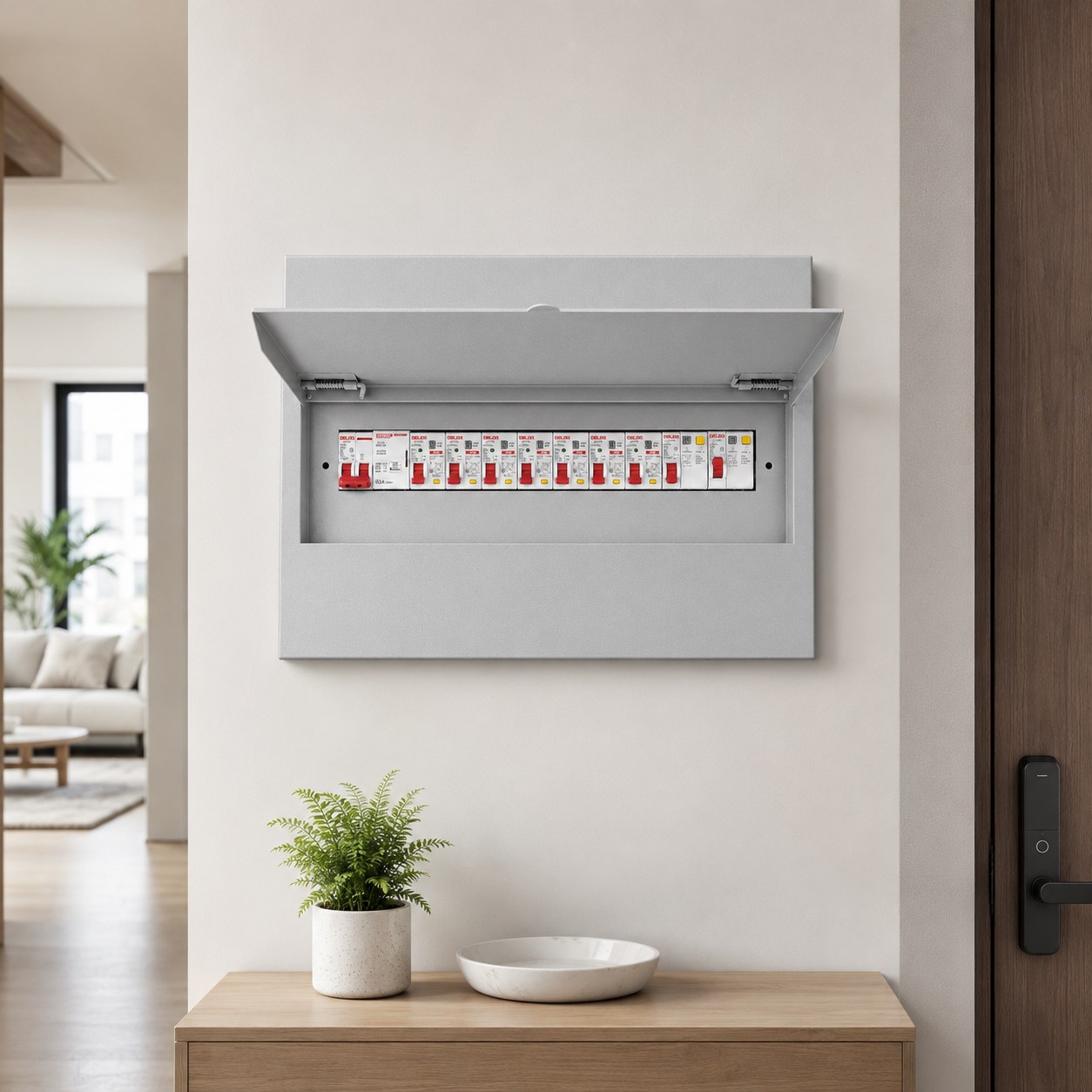

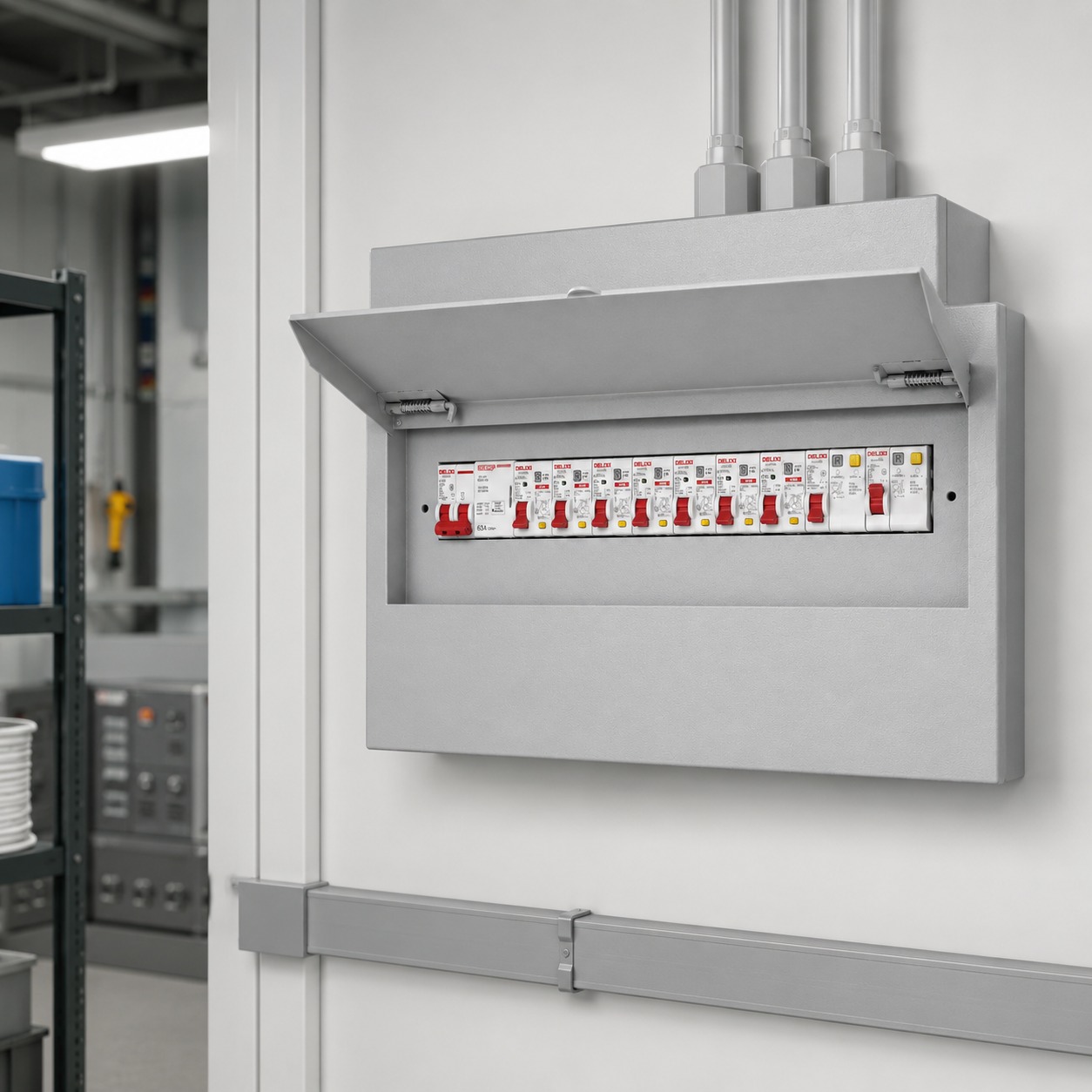

Installation Method: Surface Mount / Recessed Mount (Both styles are applicable)
Circuit Coverage: 8 to 48 circuits
Number of Switch Rows: Single row, Double row
Enclosure Protection Rating: IP30 (Indoor dustproof and impact-resistant, suitable for dry indoor environments only)
Cover/Box Material: Cold-rolled steel

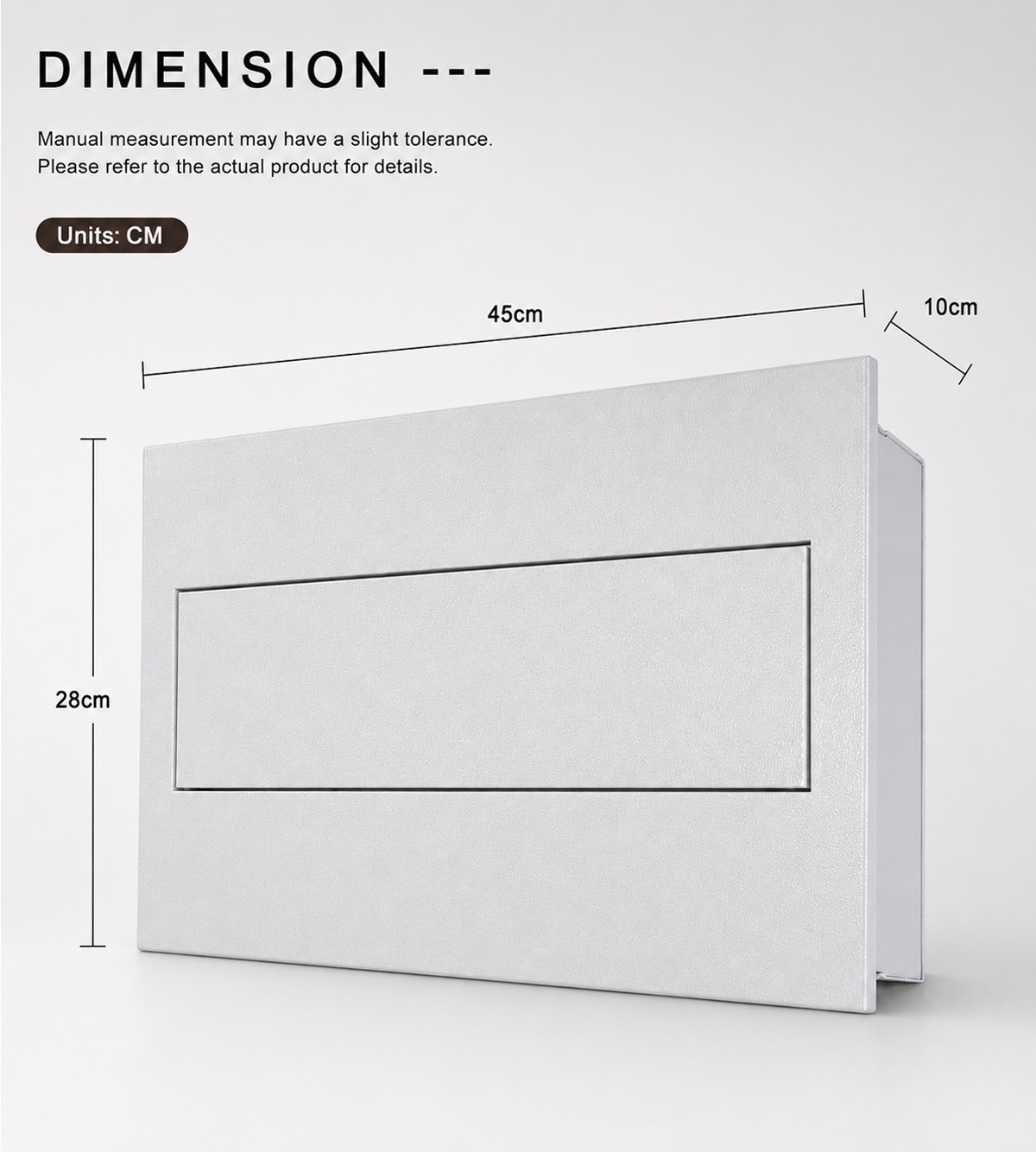

Dimensions: Standard size (300-530) * 280 * 100, customizable
Outer Panel Material: PC flame-retardant plastic
Sheet Thickness: 1.2mm
Appearance Color: Standard color scheme shown in the picture (7035)
