The main distribution box is the primary power distribution hub of a building, factory, or construction site’s power distribution system. It receives the incoming power from the external power grid and is responsible for the reception, distribution, protection, and control of electrical energy. It is the core source equipment of the entire power distribution system, converting high-voltage input into multiple low-voltage outputs, transmitting power to lower-level distribution boxes and switch boxes, and also providing safety protection functions.
I. Power Reception and Central Control Distribution
- Receives the main power supply from the power grid, completing the power aggregation.
- Distributes the main power supply to various distribution boxes and load circuits, achieving hierarchical power distribution.
For example, in a factory: one circuit supplies workshop lighting, one circuit supplies production equipment, and one circuit supplies office areas; in a building project: circuits supply floors, shops, and equipment areas.
II. Overload and Short Circuit Protection
Internal configuration includes a main circuit breaker, fuses, and other protective components:
Overload Protection: Automatically trips the circuit breaker to cut off power when the total power consumption exceeds the rated load, preventing overheating and fire.
Short Circuit Protection: In the event of a short circuit fault, instantly cuts off the power supply to prevent damage to cables and equipment.
Some main distribution boxes are also equipped with a leakage current protection device, which quickly cuts off power in the event of a leakage current to prevent electric shock.
III. Power On/Off and Maintenance Control
- The main switch can control the on/off of the entire power supply. When a complete power outage is required for maintenance or repair, the main switch can be directly disconnected without shutting down downstream equipment one by one.
- Facilitates overall power outage maintenance by electricians, ensuring the personal safety of maintenance personnel.
IV. Metering and Monitoring (Optional)
Some main distribution boxes have a built-in energy meter to calculate the total electricity consumption of the entire area for energy consumption statistics and electricity billing.
Voltmeters and ammeters can be added to monitor voltage and current status in real time, facilitating maintenance personnel to observe whether the power supply is normal.
V. Line Protection and Safety Measures

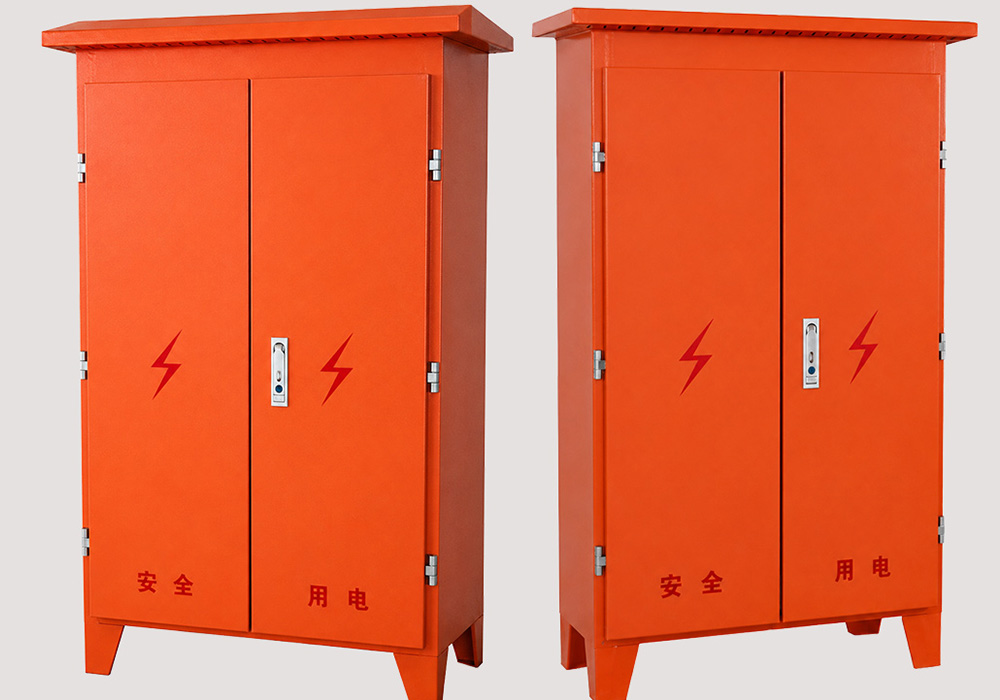

The enclosure has a protective shell, providing dust and electric shock protection for internal wiring and components, preventing accidental contact with live parts. The main distribution box for outdoor use is waterproof and dustproof, suitable for harsh environments such as outdoor areas and construction sites. Standardized wiring and organized incoming and outgoing cables prevent clutter and reduce the risk of line faults.
VI. Isolation and Hierarchical Power Distribution for Easier Fault Diagnosis
The main distribution box is a primary power distribution unit, connecting to secondary distribution boxes, forming a hierarchical power distribution model of “main distribution box → distribution box → switch box/electrical equipment”.
When a downstream circuit trips due to a fault, only the corresponding branch switch is disconnected, preventing a complete power outage, narrowing the outage area, facilitating rapid location of the faulty circuit, and reducing production and daily life losses.
Summary
In short: The main distribution box is the “central switch” of the power distribution system, undertaking five core functions: receiving incoming lines, distributing power, fault protection, power outage during maintenance, and safety protection. It is widely used in various power-consuming locations such as factories, construction sites, office buildings, residential communities, shops, and large self-built houses, and is a key device for ensuring a safe and stable power supply.
